PHILMAC Poly Grip Compression Fitting 1.25"

Body has 1" female pipe thread and connects to 1.25" poly pipe

NOTE: CURRENT FITTINGS ARE ALL BLACK AND THE COMPONENTS DO NOT INTERCHANGE WITH THE OLD BLUE BODIES
NO MORE HEATING THE PIPE OR USING HOSE CLAMPS!

• Just screw the coupling together and tighten with a wrench or slip joint pliers. (Heating the pipe will aid in the initial assembly but is not required afterwards.)
• Provides a positive seal with no end pull outs
• Made from UV and corrosion resistant engineering grade thermoplastics Proven reliability - used worldwide CSA approved
• Straight couplings (with male or female pipe thread) to fit 1 inch and 1 1/4 inch inside diameter pipe are in stock with other sizes available

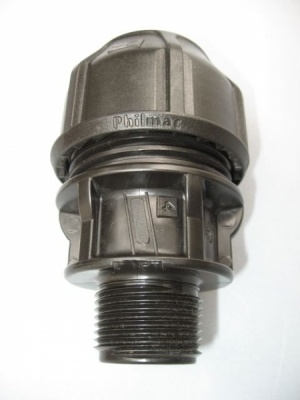

PHILMAC Poly Grip Compression Fitting 1"

Body has 1" Male pipe thread and connects to 1" poly pipe

NOTE: CURRENT FITTINGS ARE ALL BLACK AND THE COMPONENTS DO NOT INTERCHANGE WITH THE OLD BLUE BODIES
NO MORE HEATING THE PIPE OR USING HOSE CLAMPS!

• Just screw the coupling together and tighten with a wrench or slip joint pliers. (Heating the pipe will aid in the initial assembly but is not required afterwards.)
• Provides a positive seal with no end pull outs
• Made from UV and corrosion resistant engineering grade thermoplastics Proven reliability - used worldwide CSA approved
• Straight couplings (with male or female pipe thread) to fit 1 inch and 1 1/4 inch inside diameter pipe are in stock with other sizes available

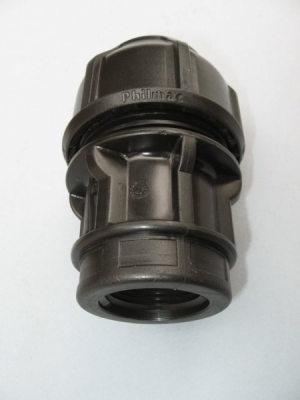

PHILMAC Poly Grip Compression Fitting 1"

Body has 1" female pipe thread and connects to 1" poly pipe

NOTE: CURRENT FITTINGS ARE ALL BLACK AND THE COMPONENTS DO NOT INTERCHANGE WITH THE OLD BLUE BODIES
NO MORE HEATING THE PIPE OR USING HOSE CLAMPS!

• Just screw the coupling together and tighten with a wrench or slip joint pliers. (Heating the pipe will aid in the initial assembly but is not required afterwards.)
• Provides a positive seal with no end pull outs
• Made from UV and corrosion resistant engineering grade thermoplastics Proven reliability - used worldwide CSA approved
• Straight couplings (with male or female pipe thread) to fit 1 inch and 1 1/4 inch inside diameter pipe are in stock with other sizes available

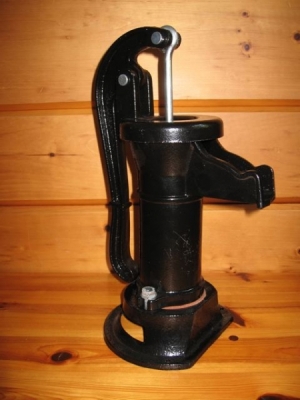

Boshart Old Fashioned Shallow Well Pump

Boshart old fashioned shallow well hand pump, also called a cistern pump.

Has a cast iron body, steel pump rod, aluminum plunger assembly and leather cup.

Open spout design.

NOTE: this pump should not be used on a well because contaminants can enter the well through the open top. Use the Hitzer, Oasis WP2 or OasisWP2P for drinking water applications.

Will lift (pull) water from up to  22 feet vertically but this distance decreases as the altitude above sea level increases (see chart below).This distance is measured from the hand pump to the surface of the water.

Has 1 1/4" female pipe thread in base for water supply pipe.

ALTITUDE   SUCTION LIFT

Sea level          22.0 ft

1000 ft             20.8 ft

3000 ft             18.4 ft

5000 ft             16.0 ft

7000 ft             13.6 ft

9000 ft             11.2 ft

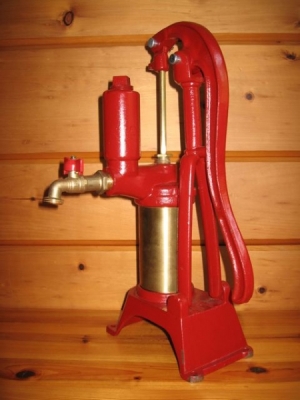

Deluxe shallow well hand pump for pumping water overhead

NOTE: This hand pumps ships directly from the factory to help reduce the price, please email us your delivery address and we will be happy to calculated the shipping charge.

Deluxe shallow well hand pump with brass barrel (also called a cistern pump).

Will lift (pull) water from up to  22 feet vertically but this distance decreases as the altitude above sea level increases (see chart below).This distance is measured from the hand pump to the surface of the water.

Has sealed top chamber to help keep contaminants out of the water.

Capable  of pumping water overhead up to 30 feet.

Develops 15 psi of pressure.

Has 1 1/4" female pipe thread in base for water supply pipe.

Has 3/4" female pipe thread in discharge port and includes ball type shut off valve.

ALTITUDE   SUCTION LIFT

Sea level          22.0 ft

1000 ft             20.8 ft

3000 ft             18.4 ft

5000 ft             16.0 ft

7000 ft             13.6 ft

9000 ft             11.2 ft

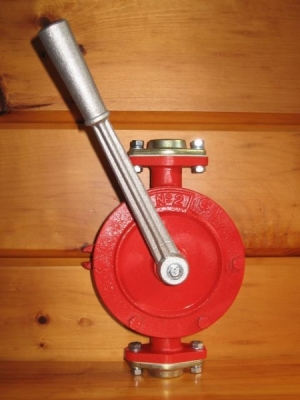

Dual Action Semi-Rotary Hand Wing Pump

THE  ITALIAN MADE EXCELSIOR E 2 SEMI ROTARY HAND WING PUMP, A PREMIUM QUALITY REPLACEMENT FOR THE SIGMA K2.

ALSO, CHECK OUT THE OASIS WP2P AS AN ALTERNATIVE.

"For numerous industrial, marine and domestic applications, an EXCELSIOR hand pump is a great solution."

"Proven Technology" Used extensively in Europe today.

The ultimate hand-operated water pump for areas without electricity.

Dual Action Semi-Rotary Hand Wing Pump

• The simple robust design using quality materials and workmanship guarantees a long and effective service life.
• The body is cast iron, the wing with valve set, and the vee valve are brass and the shaft is steel.

OPERATION:

• The handle moves back and forth in a 90 degree arc, which in turn causes the wing with valve set (30) to semi-rotate within the body.
• The vee valve (31) operates as the inlet check valve.
• The unit discharges fluid on both strokes of the handle.
• It must be bolted to a strong vertical surface with the inlet at the bottom or to either side - two mounting lugs are provided.
• The handle can be installed either pointing up, down, left or right.

 FEATURES:

This pump incorporates many original technical features which make it the best of its type.

• Strong inlet flange, outlet flange and mounting lugs prevent breakage even when subjected to rough treatment.
• The tapered internal body is a unique design which assures automatic settlement of the wings, thus guaranteeing smooth efficient operation for many years.
• Each pump is tested to a suction lift of 7 meters of water and 20 meters of discharge head.

CAUTION:  Pumps used for water must be protected from internal rust whenever they will be unused for extended periods of time. Mineral oil (U.S.P. heavy - sold in pharmacies) is non toxic and can be poured in the discharge port for this purpose.

SPECIFICATIONS:

• Weight: 6 kg (13.2 lbs.)
• Capacity: 6.5 G.P.M (30 L.P.M.) at 55 double strokes per minute
• Plumbing Connection: 1" female pipe thread
• Maximum Discharge Pressure: 37.5 P.S.I.
• Maximum Discharge Height: 25 m (82 ft.)
• Maximum Suction Lift: 7 m (22 ft.)*
  (this distance reduces with altitude - see chart below)

DIMENSIONS:

RESIDENTIAL USES:

• Used in locations where there is no electricity
• Makes an excellent emergency backup to an electric pump during a power failure (see below)
• Will pull water through a submersible pump
• Will pressurize a tank so there is water at the taps
• See the Specifacations section above for capabilities

INDUSTRIAL AND MARINE USES:

Excelsior E series pumps meet all major European industrial standards and  have numerous industrial applications.

They can be used:

• to transfer clear light fluids in the marine, petrochemical, construction, agriculture and automotive industry
• to handle fluids up to 80 degrees C. (176 degrees F.)
• as manual bilge pumps in commercial ships
• as a completely reliable backup to an electric pump

THIS PRODUCT CURRENTLY ON BACKORDER

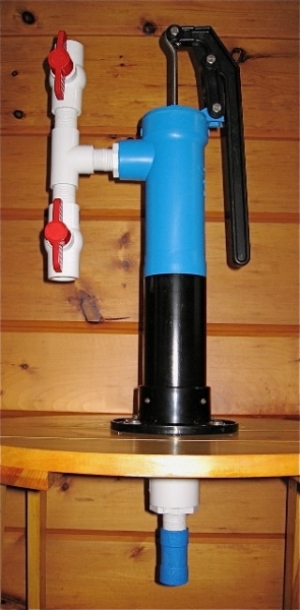

The OASIS WP2P shallow well hand pressure pump for pressurizing a tank or pumping water into and overhead storage tank.

OASIS WP2P SHALLOW WELL HAND PRESSURE PUMP HAS GLUED TOGETHER UPPER BODY

NOTE: IF YOU WANT A DIFFERENT HANDLE ORIENTATION THAN SHOWN IN THE PHOTO JUST SEND ME AN EMAIL DESCRIBING THE DESIRED HANDLE POSITION

An ideal alternative to a cast iron pump. Can be used as a backup to an electric pump during a power failure or where there is no electricity (see specification below).

Made in the US and Canada of ABS, PVC, brass and stainless steel, it is light weight and will not rust or corrode.

Produces up to 40 psi of discharge pressure, and can push water up to 82 feet overhead.

The closed design helps prevent contaminants from entering a well. Includes T fitting and shutoff valves for easy priming.

The base can be mounted to any strong horizontal surface using four 1/4" fasteners, a 3" center hole is required.

The hand pump simply sits in the base, and if the waterlines are connected using our AGI-100A unions, the pump can easily be disconnected, removed and then reinstalled and reconnected as needed.

NOTE - this pump does not drain by lifting the handle all the way up.

SPECIFICATIONS

• Height above platform: 24" (60 cm)
• Length below platform: 8" (20 cm)
• Base diameter: 7" (17.5 cm)
• Cylinder ID (inside diameter): 2" (5.0 cm)
• Brass plunger has 2 cup leathers
• Weight: 7 lbs (3.2 kg)
• Discharge port: 1" female national pipe thread with vermin screen Inlet port: 1" female national pipe thread
• Capacity: 3 gpm (13.6 lpm) at 60 double strokes per minute
• Maximum discharge height: 82' (25 meters)
• Maximum suction lift: 22' (7 meters)

Suction lift is the vertical distance from the pump to the surface of the water, and this distance decreases with altitude above sea level - see chart below

MAXIMUM SUCTION LIFT CHART

Altitude Suction Lift at Sea level 22.0 ft

• 1000 ft 20.8 ft
• 3000 ft 18.4 ft
• 5000 ft 16.0 ft
• 7000 ft 13.6 ft
• 9000 ft 11.2 ft

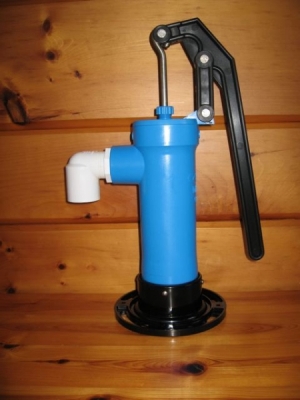

Oasis WP2-1 Shallow Well Hand Pump

HAS A GLUED TOGETHER BODY

NOTE: IF YOU WANT A DIFFERENT HANDLE ORIENTATION THAN SHOWN IN THE PHOTO JUST SEND ME AN This email address is being protected from spambots. You need JavaScript enabled to view it. DESCRIBING THE DESIRED HANDLE POSITION

NEW OPTION: If you will not be pressurizing a tank or pumping water overhead, this pump can be assembled with the top cap attached with 2 screws instead of glued on. This allows the pump to be taken apart for repair or cleaning (important if you pump water from a lake or river etc. where debris can be sucked into the pump) If you wish to have the top cap attached with screws just send me an This email address is being protected from spambots. You need JavaScript enabled to view it. to let me know.

An ideal alternative to a cast iron pump.

• Made in the USA of ABS plastic with stainless steel pump rod and fasteners, the Oasis Pump is light weight, will not rust or corrode and is virtually unbreakable.
• Tests show no wear on the cylinder or plunger cup after millions of strokes.
• The Polyurethane molded cup will not wear, distort, dry out, is bacterial inert, resistant to rot, mildew and corrosion.
• The closed design helps prevent contaminants from entering a well.
• Includes adapter and elbow so a hose can be attached to pump water to another location and overhead.
• Developes 20 psi of discharge pressure which makes it good for filling overhead tanks in gravity water systems.
• The base mount allows the pump to be attached any horizontal surface i.e.. counter top using 1/4" fasteners (4 required). 1 1/4" water pipe goes from the bottom of the unit to a lake, river, cistern or well.
• It also can be screwed directly onto a 1 1/4'' or 2" pipe for a drive point (sand point) well - a 1 1/4" to 2" reducer bushing is included.
• It can be attached to a larger well casing using a platform to which the base mount is bolted - a 1 1/4" water pipe then goes down the well.
• NOTE -  this pump does not drain by lifting the handle all the way up.

SPECIFICATIONS:

• Height: 18" (45 cm)
• Base Diameter: 7" (17.5 cm)
• Cylinder I.D.:3" (7.5 cm)
• Weight: 3 lbs. (1.4 kg)
• Discharge Port: 1 1/4" female pipe thread with vermin screen and elbow with 1 1/4" female pipe thread
• Suction Port: 1 1/4" female pipe thread, or 2" with reducer bushing removed
• Capacity: 5 G.M. (23 L.P.M.) at 50 strokes per minute
• Maximum Suction Lift: 22 ft.(7 meters) - this distance decreases with altitude

Oasis deep well hand pump with blue body HAS BLUE BODY LIKE THE PHOTO OF THE WP2-1

NOTE: IF YOU WANT A DIFFERENT HANDLE ORIENTATION THAN SHOWN IN THE PHOTO JUST SEND ME AN EMAIL DESCRIBING THE DESIRED HANDLE POSITION

Made in the USA of ABS and PVC plastic with stainless steel pump rod and fasteners, the Oasis pump is light weight and will not rust or corrode.

This hand pump set is capable of pumping water from depths of up to 50 Feet.

The closed design helps prevent contaminants from entering the well Water can be pumped to another location and overhead by attaching a 1 1/4” hose to the discharge spout. Can be made freeze proof by drilling a 1/16” hole in the drop pipe below the frost line - after you stop pumping the water above the hole drains back down the well.

Has a sealed top chamber (which repels rain) and is recommended for drinking water

PUMP STAND SPECIFICATIONS: (The component that sits above the well).

• Height: 24” (90 cm) and can be easily modified to suit.
• Base Diameter: 7” (17.5 cm) Weight: 6 lbs (2.8 kg)
• Discharge Port: 1 1/4” female pipe thread with vermin screen, and elbow with 1 1/4" female pipe thread Suction Port: 2” female pipe thread for drop pipe.
• Pump Rod Size: 3/8” diameter with adapter to 1/2” rigid PVC plastic pipe
• Pump Rod Stroke: 3 1/2” (9 cm) All fasteners and the upper pump rod are stainless steel.

CYLINDER SPECIFICATIONS: (The component that goes down the well).

• CYL 002F Height: 29” (72.5 cm)
• Outside Diameter: 3 1/8” (7.5 cm)
• Inside Diameter: 2” (5.0 cm)
• Weight: 5 lbs (2.6 kg)
• Pipe Size: 2” PVC slip fitting (solvent weld)
• Plunger: All Brass with 2 cup leathers and stainless steel pump rod adapter.
• Pump Rod Size: 1/2” PVC Cylinder Barrel: made of rigid PVC.
• Capacity: approximately 2 G.P.M. at 50 strokes per minute

NOTE: To use this hand pump as a backup to an electric submersible pump during a power failure, the above PVC cylinder can be replaced with a brass cylinder (1 13/16" inside diameter, 2" outside diameter) which will more easily fit inside a well casing beside the water line coming from the submersible pump. Please contact us for the price and further information.

MAJOR COMPONENTS The major components of a complete installation are as follows:

• (1) PUMP STAND The base is attached to a platform above the well casing (using 1/4” fasteners (4 required)wp2ds Has 2” female pipe thread to attach the drop pipe Has stainless steel upper rod with adapter to attach pump rod.
• (2) DROP PIPE (2” rigid PVC plastic) - NOT INCLUDED Connects the pump stand to the well cylinder and carries the water to the surface Comes in 10 foot lengths, and can be glued (solvent welded) or screwed together using couplers purchase locally
• (3) PUMP ROD (1/2” rigid PVC plastic) - NOT INCLUDED Located inside the drop pipe and connects the pump handle to the plunger assembly in the cylinder this hollow pump rod actually floats and therefore reduces the pumping effort Comes in 10 foot lengths, and can be glued (solvent welded) or screwed together using couplers purchase locally
• (4) WELL CYLINDER (2 I.D. made of rigid PVC plastic) Has a brass plunger with 2 cup leathers, and is the actual pumping component that goes down the well the up and down movement of the plunger (activated by the pump handle and pump rod) brings the water to the surface Has adapter to connect to the pump rod. Has external foot valve
• NOTE: Enough drop pipe and pump rod is required to locate the cylinder 15ft below the surface of he water.
• (5) PLATFORM - NOT INCLUDED Can be fabricated from wood or steel and must be high enough to allow access to the well seal bolts
• (6) WELL SEAL - NOT INCLUDED Used to seal the top of the well casing where the drop pipe goes in
• (7) WELL CASING - NOT INCLUDED Installed by a well driller - 4, 5 and 6” are common sizes The 2” rigid PVC plastic pipe used as the drop pipe, the 1/2” rigid PVC plastic pipe used as the pump rod and the well seal can be purchased locally at a plumbing store, or can be ordered from us - please contact us for details.

Oasis shallow well non freezing hand pump with blue body

HAS BLUE BODY LIKE THE PHOTO OF THE WP2-1

NOTE: IF YOU WANT A DIFFERENT HANDLE ORIENTATION THAN SHOWN IN THE PHOTO JUST SEND ME AN This email address is being protected from spambots. You need JavaScript enabled to view it. DESCRIBING THE DESIRED HANDLE POSITION

Oasis WP2NF is for installation in a well or cistern only

• Needs a minimum 5” well casing or opening into cistern
• This unit has the cylinder (pumping mechanism) located 10 feet below the base of the pump stand and therefore below the frost line.
• Made in the USA and Canada of ABS and PVC, the Oasis pump is light weight and will not rust or corrode

The Oasis Shallow Well Pump hand pump is capable of pumping water out of a well or cistern from depths of up to 22 Feet

• The closed design helps prevent contaminants from entering the well
• Water can be pumped to another location and overhead by attaching a 1 1/4” hose to the discharge spout
• Does not freeze because a 1/16” hole is drilled in the drop pipe below the frost line
• After you stop pumping the water above the hole drains back down the well

PUMP STAND SPECIFICATIONS: (The component that sits above the well).

• Height: 24” (60 cm) and can be easily modified to suit
• Base Diameter: 7” (17.5 cm)
• Weight: 6 lbs (2.8 kg)
• Discharge Port: 1 1/2” I.D., includes 1 1/4” female pipe thread adapter (with vermin screen), and elbow with 1 1/4” female pipe thread
• Suction Port: 2” female pipe thread for drop pipe
• Pump Rod Size: 3/8” diameter with adapter to 1/2” rigid PVC plastic pipe (female pipe thread)
• Pump Stroke: 3 1/2” (9 cm)
• All fasteners and the upper pump rod are stainless steel

CYLINDER SPECIFICATIONS: (The component that goes down the well).

• Length: 26” (65 cm) including foot valve
• Outside Diameter: 4 3/8” (11 cm)
• Inside Diameter: 3” (7.5 cm)
• Weight: 5 lbs (2.6 kg)
• Pipe Size: 2” rigid PVC with female pipe thread
• Plunger Assy: Engineering Thermoplastic and stainless steel, with waterproof leather cup
• Plunger Rod: 1/2” rigid PVC pipe with female pipe thread
• Cylinder Barrel: made of rigid PVC plastic
• Capacity: approximately 4 gpm at 50 strokes per minute

MAJOR COMPONENTS

The major components of a complete installation are as follows:

(1) PUMP STAND

• The base is attached to a platform above the well casing (using 1/4" fasteners, 4 required and available locally)
• Has 2” female pipe thread to attach the drop pipe
• Has stainless steel upper rod with adapter to attach pump rod

(2) DROP PIPE (2” rigid PVC plastic) - purchase locally

• 1 length 10’ long
• Connects the pump stand to the well cylinder and carries the water to the surface

(3) PUMP ROD (1/2” rigid PVC plastic) - purchase locally

• 1 length 10' long
• Located inside the drop pipe and connects the pump handle to the plunger assembly in the cylinder
• This hollow pump rod actually floats and therefore reduces the pumping effort

(4) WELL CYLINDER (3” I.D., 4 3/8” OD) made of rigid PVC plastic, with 2” female pipe thread

• The actual pumping component that goes down the well
• The up and down movement of the plunger (activated by the pump handle and pump rod) brings the water to the surface
• Plunger has 1/2” female pipe thread to connect to the pump rod
• Has external foot valve

(5) INSERT ADAPTER (1 1/4” ) - 2 supplied

• 1 screws into bottom of the cylinder and 1 screws into the foot valve
• Used to attach 1 1/4” black poly pipe

(6) BLACK POLY PIPE (1 1/4” INSIDE DIAMETER ) - purchase locally

• Goes from the bottom of the cylinder down into the water
• Must be long enough to reach 10 to 15 feet below the surface of the water if possible, keeping in mind the level may drop in the dry time of year
• Has the foot valve installed on the bottom

(7) FOOT VALVE (1 1/4”) - 1 supplied

• Attaches to bottom of black poly pipe
• Is part of the pumping mechanism
• Must be at least 6” above bottom of well or cistern

(8) PLATFORM - NOT INCLUDED

• Can be fabricated from wood or steel and must be high enough to allow access to the well seal bolts

(9) WELL SEAL - purchase locally to fit your specific well casing

• Must have hole for 2" pipe
• Used to seal the top of the well casing where the drop pipe goes in

(10) WELL CASING - NOT INCLUDED

• Installed by a well driller, 6” is a common size, BUT MUST BE AT LEAST 5 “ TO ACCOMMODATE THE CYLINDER, OTHERWISE AN OPTIONAL SMALLER CYLINDER MUST BE USED, contact us for details

(11) STAINLESS STEEL HOSE CLAMPS (SIZE #20), 4 supplied

• Used to attach black poly pipe to insert adapters in cylinder and foot valve
