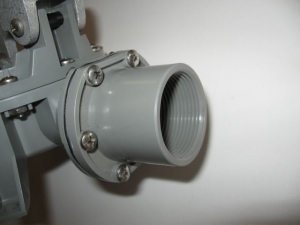

Has horizontal handle and has 1 1/4" female pipe threads in the inlet and outlet flanges

Capacity: 54 liters (12 gallons) per minute at 90 double strokes (up and down) per minute, 0.63 liters (.13 gallons) per double stroke

Weight: .57 kilograms (1.25 lbs.)

Size: 25 cm. long (10") - 12.5 cm. wide (5") - 10 cm. high (4")

Same as the 500H but has inlet and outlet flanges threaded with 1 1/4"female pipe thread makes an excellent hand operated back up sump pump can be connected to 1 1/4" sump pump hose which is available at hardware stores and plumbing suppliers as a sump pump hose kit (comes in a 24 foot length with 1 threaded insert adapter and 1 clamp). This is hose is easily cut so that 1 piece connects to the inlet and 1 piece connects to the outlet, 1 extra threaded insert adapter and 1 extra clamp will be needed.

The pump can be permanently mounted to a vertical or horizontal surface or attached to a small piece of wood for portability (has four screw holes). body made of injection molded DuPont Delrin handle made of anodized aluminum diaphragm and valves made of Buna-N, reinforced with Dacron, fasteners made of stainless steel handle orientation to the inlet and outlet fittings can be changed by rotating the clamp ring to 12 different positions.
Handle movement is up and down with pump sitting on horizontal surface, to convert to back and forth movement order the vertical handle option for rough use applications order the heavy duty aluminum clamp ring. NOTE - for drinking water applications the FDA approved model G2400 is recommended, contact us for details.

Makes an excellent hand operated back up sump pump connects to 1 1/2" hose using clamps, to connect to 1 1/4" sump pump hose which is sold at most hardware stores order the Guzzler 500H-1 1/4"F. can be permanently mounted to a vertical or horizontal surface or attached to a small piece of wood for portability (has four screw holes). body made of injection molded DuPont Delrin handle made of anodized aluminum diaphragm and valves made of Buna-N, reinforced with Dacron (contact us for optional materials available) fasteners made of stainless steel handle orientation to the inlet and out let fittings can be changed by rotating the clamp ring to 12 different positions. handle movement is up and down with pump sitting on horizontal surface, to convert to back and forth movement order the vertical handle option. for rough use applications order the heavy duty aluminum clamp ring.

NOTE - for drinking water applications the FDA approved model G2400 is recommended, contact us for details.

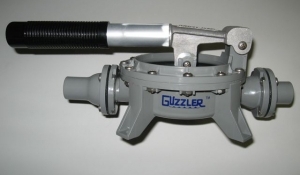

Has horizontal handle and connects to 1 1/2" ID hose using a clamp

• Capacity: 54 liters (12 gallons) per minute at 90 double strokes (up and down) per minute, 0.63 liters (.13 gallons) per double stroke
• Weight: .57 kilograms (1.25 lbs.)
• Size: 25 cm. long (10") - 12.5 cm. wide (5") - 10 cm. high (4")

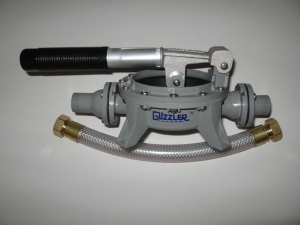

Has horizontal handle, connects to 1" I.D. hose using a clamp and has male garden hose thread on the inlet and outlet fittings, plus 3 foot hose for priming jet pumps.

Capacity: 38 litres per minute (8 G.P.M.) at 90 double strokes (up and down) per minute, 0 .42 liters (.09 gallons) per double stroke
Weight: .57 kilograms (1.25 lbs.)
Size: 25 cm. long (10") - 12.5 cm. wide (5") - 10 cm. high (4")

• same as the Guzzler 400H except has male garden hose thread on inlet and outlet fittings
• body made of injection molded DuPont Delrin
• handle made of anodized aluminum
• diaphragm and valves made of Buna-N, reinforced with Dacron (contact us for optional materials available).
• fasteners made of stainless steel
• handle orientation to the inlet and out let fittings can be changed by rotating the clamp ring to  12 different positions.
• handle movement is up and down with pump sitting on horizontal surface, to convert to back and forth movement order the Vertical Handle option.
• for rough use applications order the heavy duty aluminum clamp ring.
• male garden hose thread allows for the easy connection of the hook up hose and a garden hose, BUT for transferring a large volume of water you must use at least a 1" inside diameter hose, garden hose is much too small which results in hard pumping with very low volume.
• includes a 3 foot priming hose: 3/4" I.D. flexible braided PVC with a female garden hose fitting crimped on each end. NOTE - 1 foot hose shown in photo
• to also use this pump as back up manual sump pump, order 2 sump pump hose adapters. Most hardware stores carry a 1 1/4" sump pump hose kit (24 feet of hose) which will connect to this pump using these adapters. This hose can be easily cut in order to attach one piece to the inlet and one piece to the outlet on the Guzzler. The pump can be permanently mounted to a horizontal or vertical surface, or attached to a small piece of wood for portability (4 screw holes provided).
• NOTE - for drinking water applications the FDA approved model G2400 is recommended, contact us for details.

Capacity: 38 litres per minute (8 G.P.M.) at 90 double strokes (up and down) per minute, 0 .42 liters (.09 gallons) per double stroke
Weight: .57 kilograms (1.25 lbs.)
Size: 25 cm. long (10") - 12.5 cm. wide (5") - 10 cm. high (4")

• same as the Guzzler 400H except has male garden hose thread on inlet and outlet fittings
• body made of injection molded DuPont Delrin
• handle made of anodized aluminum
• diaphragm and valves made of Buna-N, reinforced with Dacron (contact us for optional materials available).
• fasteners made of stainless steel
• handle orientation to the inlet and out let fittings can be changed by rotating the clamp ring to  12 different positions.
• handle movement is up and down with pump sitting on horizontal surface, to convert to back and forth movement order the vertical handle option.
• for rough use applications order the heavy duty aluminum clamp ring.

• male garden hose thread allows for the easy connection of the hook up hose and a garden hose, BUT for transferring a large volume of water you must use at least a 1" inside diameter hose, garden hose is much too small which results in hard pumping with very low volume.
• includes a 2 foot priming hose: 3/4" I.D. flexible braided PVC with a female garden hose fitting crimped on each end. NOTE - 1 foot hose shown in photo.
• to also use this pump as back up manual sump pump, order 2 sump pump hose adapters. Most hardware stores carry a 1 1/4" sump pump hose kit (24 feet of hose) which will connect to this pump using these adapters. This hose can be easily cut in order to attach one piece to the inlet and one piece to the outlet on the Guzzler. The pump can be permanently mounted to a horizontal or vertical surface, or attached to a small piece of wood for portability (4 screw holes provided).
• NOTE - for drinking water applications the FDA approved model G2400 is recommended, contact us for details.

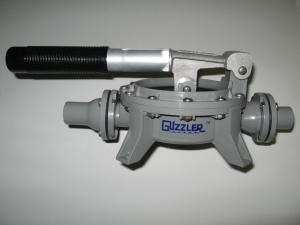

Has horizontal handle, connects to 1" I.D. hose using a clamp and has male garden hose thread on inlet and outlet flanges

Capacity: 38 litres per minute (8 G.P.M.) at 90 double strokes (up and down) per minute, 0 .42 liters (.09 gallons) per double stroke

Weight: .57 kilograms (1.25 lbs.)
Size: 25 cm. long (10") - 12.5 cm. wide (5") - 10 cm. high (4")

• same as the Guzzler 400H except has male garden hose thread on inlet and outlet fittings
• body made of injection molded DuPont Delrin
• handle made of anodized aluminum
• diaphragm and valves made of Buna-N, reinforced with Dacron. (contact us for optional materials available)
• fasteners made of stainless steel
• handle orientation to the inlet and out let fittings can be changed by rotating the clamp ring to  12 different positions.
• handle movement is up and down with pump sitting on horizontal surface, to convert to back and forth movement order the vertical handle option
• for rough use applications order the heavy duty aluminum clamp ring..

• male garden hose thread allows for the easy connection of the hook up hose for priming jet pump (see model 400HGK-2 or 400HGK-3) and a garden hose, BUT for transferring a large volume of water you must use at least a 1" inside diameter hose, garden hose is much too small which results in hard pumping with very low volume.
• to also use this pump as back up manual sump pump, order 2 sump pump hose adapters. Most hardware stores carry a 1 1/4" sump pump hose kit (24 feet of hose) which will connect to this pump using these adapters. This hose can be easily cut in order to attach one piece to the inlet and one piece to the outlet on the Guzzler. The pump can be permanently mounted to a horizontal or vertical surface, or attached to a small piece of wood for portability (4 screw holes provided).
• NOTE - for drinking water applications the FDA approved model G2400 is recommended, contact us for details.

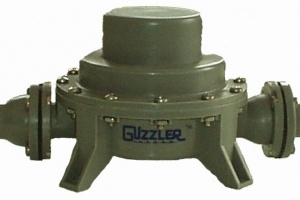

Capacity: 9 litres (2 gallons) per minute at 60 double strokes (up and down) per minute, 0.17 liters (.03 gallons) per double stroke with 1" hose

Weight : .57 kilograms (1.25 lbs.)

Size: 25 cm. long (10") 12.5 cm. wide (5")- 10 cm. high (4")

• body made of injection molded DuPont Delrin
• diaphragm made of Buna-N (Nitril), reinforced with Dacron
• valves are duck bill style (better for debris) made of Buna-N (Nitril)
• fasteners made of stainless steel
• these pumps are used in applications where there is less then 2 feet of suction lift. Since it is the return spring that pulls the water into the pump. For example:
• foot operated bilge pumps (boats, kayaks, canoes, etc.)
• water supply in trailers
• flush pump in portable toilets
• water display in museums and science centres
• stronger springs are available for higher suction lifts, contact us for details
• available with 3/4" male pipe thread to attach 90 degree elbows for tight installations, contact us for details

• body made of injection molded DuPont Delrin
• handle made of anodized aluminum
• diaphragm and valves made of Buna-N, reinforced with Dacron. (contact us for optional materials available)
• fasteners made of stainless steel
• handle orientation to the inlet and outlet fittings can be changed by rotating the clamp ring to  12 different positions.
• handle movement is up and down with pump sitting on horizontal surface, to convert to back and forth movement order the vertical handle option
• for rough use applications order the heavy duty aluminum clamp ring
• for priming jet pumps order the Guzzler 400HGK-2 or -3
• for back up manual sump pump, order the Guzzler 400HG and 2 sump pump hose adapters. Most hardware stores carry a 1 1/4" sump pump hose kit (24 feet of hose) which will connect to this pump using these adapters. This hose can be easily cut in order to attach one piece to the inlet and one piece to the outlet on the Guzzler. The pump can be permanently mounted to a horizontal or vertical surface, or attached to a small piece of wood for portability (4 screw holes provided).
• NOTE - for drinking water applications the FDA approved model G2400 is recommended, contact us for details.
